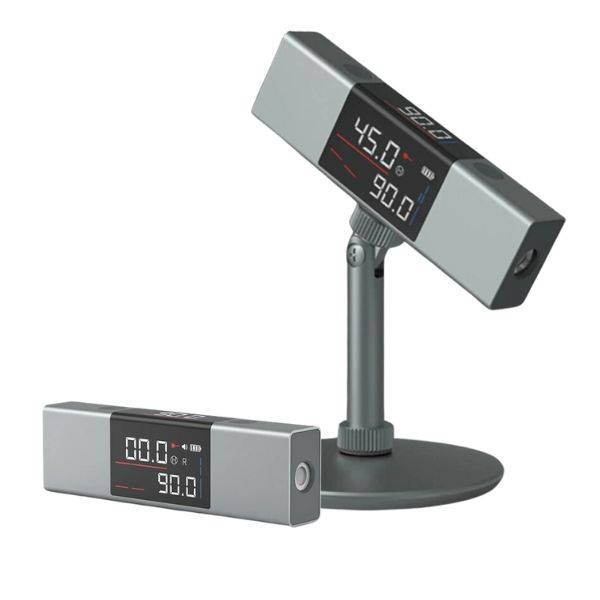

Xiaomi DUKA ATuMan LI1 Laser Angle Projector with Tripod
৳3600
৳2600
28% OFF
Corporate & Bulk Orders
Need a custom quote? Contact our Sales Team on WhatsApp for exclusive pricing and quick responses.
WhatsApp UsCategory: Accessories
The Xiaomi DUKA ATuMan LI1 is a portable laser angle projector designed for precise alignment and measurement across construction, woodworking, tiling, and general DIY tasks. It combines dual-line projection, 360° horizontal rotation, and absolute or relative angle measurement in a compact 70-gram body that runs on a 3000mAh rechargeable lithium battery for 4-6 hours of continuous use.
Xiaomi DUKA ATuMan LI1 laser angle projector: Key Takeaways
- Dual laser lines: Switch between green and red beams for visibility on different surfaces and lighting conditions.
- 360° horizontal rotation: Full-axis movement for projecting lines at any angle across walls, floors, or ceilings.
- ±1mm precision at 5 meters: Delivers clean, reliable reference lines for alignment tasks.
- Compact and lightweight: 70g body measuring 120 × 20 × 35mm — fits in a pocket or tool bag.
- USB-C charging: Rechargeable 3000mAh lithium battery with 4–6 hours of runtime.
- Aluminum tripod included: Stable setup for indoor and outdoor use.
What Is the Xiaomi DUKA ATuMan LI1?
The DUKA ATuMan LI1 is a battery-powered laser angle projector that casts two perpendicular reference lines onto a surface, then measures the angle between those lines using integrated sensors. Unlike fixed bubble levels, this device lets users project a line at any angle across a room and read the exact measurement on the double-sided HD color screens. The included aluminum tripod provides a stable base whether you are working on a wall, a floor, or a ceiling.
The device operates in two measurement modes: absolute angle, which shows the line's angle relative to horizontal (0°), and relative angle, which shows the angle between two projected lines. Switching between modes and locking the current measurement helps users transfer angles between separate workpieces.

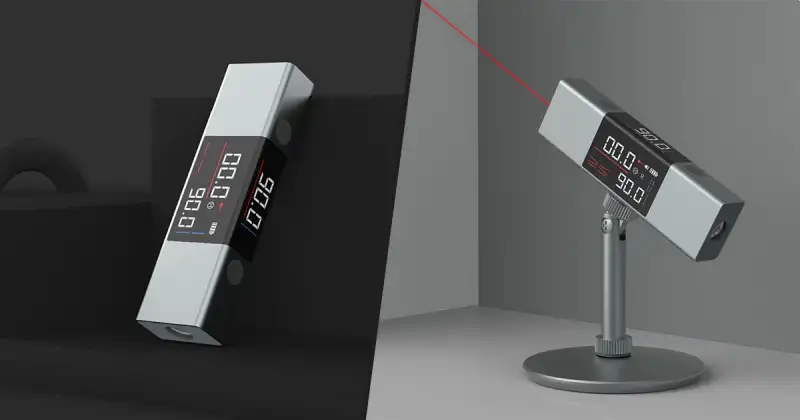

Dual Laser Lines: Green and Red Beams
The DUKA ATuMan LI1 projects two beams simultaneously. The green beam is visible in well-lit indoor environments and on light-colored surfaces; the red beam works better in dim conditions or against darker materials. Both lines are generated simultaneously, so users do not need to swap modules or recalibrate between modes.
The dual-line configuration means the device can project an L-shaped reference directly — useful for tiling layouts, cabinet installation, and tile grout alignment — without needing a second tool or manual marking. The beam stays sharp at working distances up to 5 meters, where the stated ±1mm precision keeps lines straight and consistent.

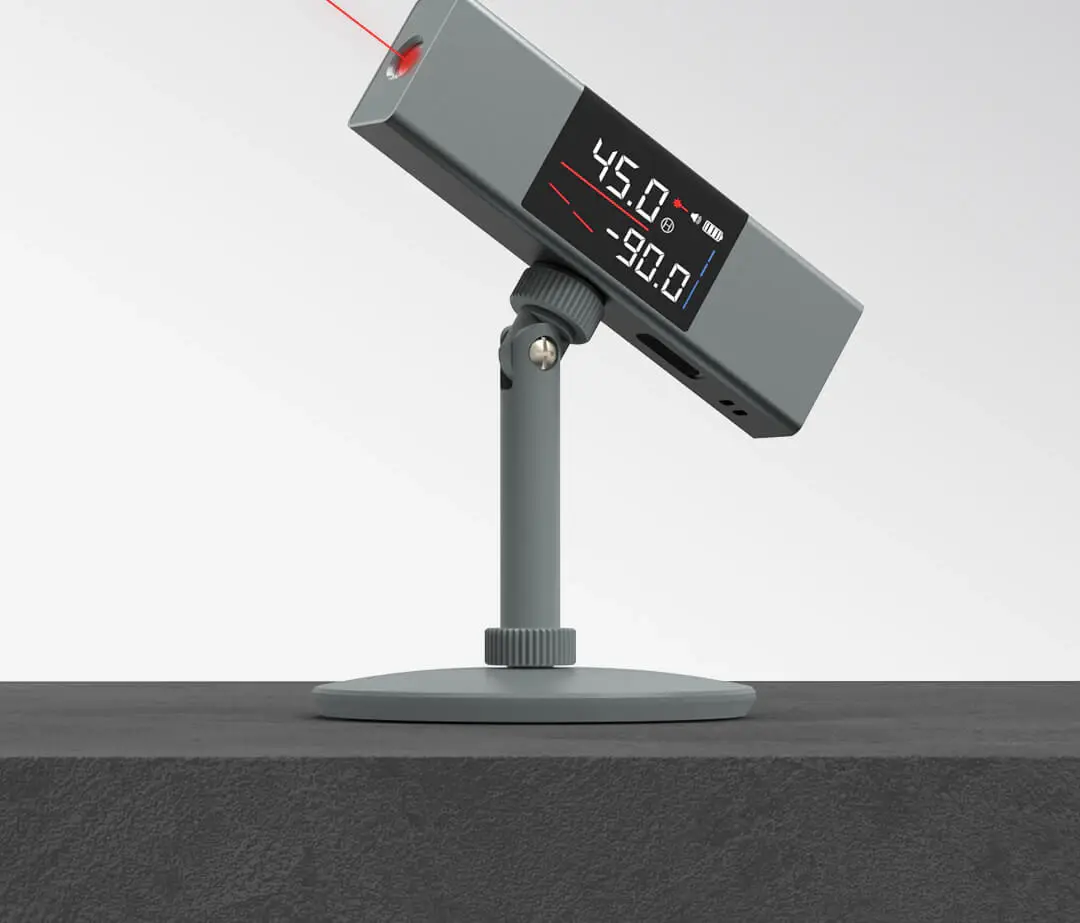

360° Rotation and Angle Measurement Modes
Full horizontal rotation lets users spin the projector freely without repositioning the tripod. The angle display updates in real time, and the lock function freezes a reading so it can be transferred accurately. Absolute mode is useful when one surface is already level; relative mode is preferred when copying an angle from an existing feature such as a cut line on a panel or a mitred edge.
The double-sided HD color screens face both the front and the back of the unit, making readings visible whether the operator stands in front of or behind the device. This is particularly useful when one person is positioning the unit and another is watching the display from across a room.
Built Quality and Portability
The body uses a frosted aluminum construction that resists scratches and provides a premium feel while keeping the weight to 70 grams. The compact dimensions of 120 × 20 × 35mm mean the unit slips into a jacket pocket or a pencil pocket on a tool belt without adding noticeable bulk. The included aluminum tripod folds down small and attaches to the tripod mount on the projector body using a standard UNC 1/4-inch thread.
Battery Life and Charging
The 3000mAh lithium cell powers approximately 4–6 hours of continuous laser projection, depending on beam brightness settings and whether both lines are active. Charging uses a USB-C port, which aligns with modern charging standards and eliminates the need for a proprietary cable. A full charge from a standard USB-C adapter takes around 3–4 hours.
Who Should Use This
The DUKA ATuMan LI1 suits homeowners doing one-off projects such as hanging shelves, aligning picture frames, or tiling a bathroom backsplash. It also serves tradespeople including tilers, carpenters, cabinet installers, and electricians who need a portable reference line and angle reader without carrying a full laser level system.
Tilers and floor layers
Project two perpendicular lines to mark a starting grid for large-format tiles. The relative angle mode helps transfer cuts around obstacles such as pipes or cabinet bases.
Cabinet and shelving installers
Lock a level line as a reference and use the relative angle mode to match the tilt of an existing adjacent surface when mounting upper cabinets.
Framers and drywall hangers
Project a reference line across a ceiling or wall to check alignment of studs or furring channels before fastening panels.
What's Included
- Xiaomi DUKA ATuMan LI1 laser angle projector
- Aluminum tripod with adjustable height
- USB-C charging cable
- Carry pouch or case (check retail package contents)
Specifications
- Brand: Xiaomi
- Model: DUKA ATuMan LI1
- Laser type: Dual-line (green + red)
- Rotation: 360° horizontal
- Precision: ±1mm at 5 meters
- Angle modes: Absolute and relative
- Display: Double-sided HD color screens
- Battery: 3000mAh lithium, rechargeable
- Battery life: 4–6 hours continuous use
- Charging: USB-C
- Body material: Frosted aluminum
- Weight: 70g
- Dimensions: 120 × 20 × 35mm
- Tripod: Aluminum tripod included
- Mount thread: UNC 1/4-inch
Setup and Basic Use
To get started, attach the DUKA ATuMan LI1 to the included tripod by screwing it onto the UNC 1/4-inch thread on the base. Place the tripod on a stable, flat surface and extend the legs to the desired height. Power on the unit using the side button; both laser lines will illuminate immediately.
Rotate the projector body to position the lines where you need them. The angle reading appears on both screens. To lock the current reading, press the lock button — the display freezes, allowing you to move the unit without losing the measurement. Switch between absolute and relative modes using the mode button.
To switch between green and red beams, use the beam-color toggle on the side panel. Green works best under bright workshop lighting or on light-colored surfaces; red is preferable in low-light conditions or on dark materials.
Care and Storage
Clean the lens with a soft, dry microfiber cloth — avoid abrasive materials that could scratch the optical surface. Do not look directly into the laser beams. Store the unit in the carry pouch when not in use, and avoid leaving the device in direct sunlight or in temperatures exceeding the operational range stated by the manufacturer.

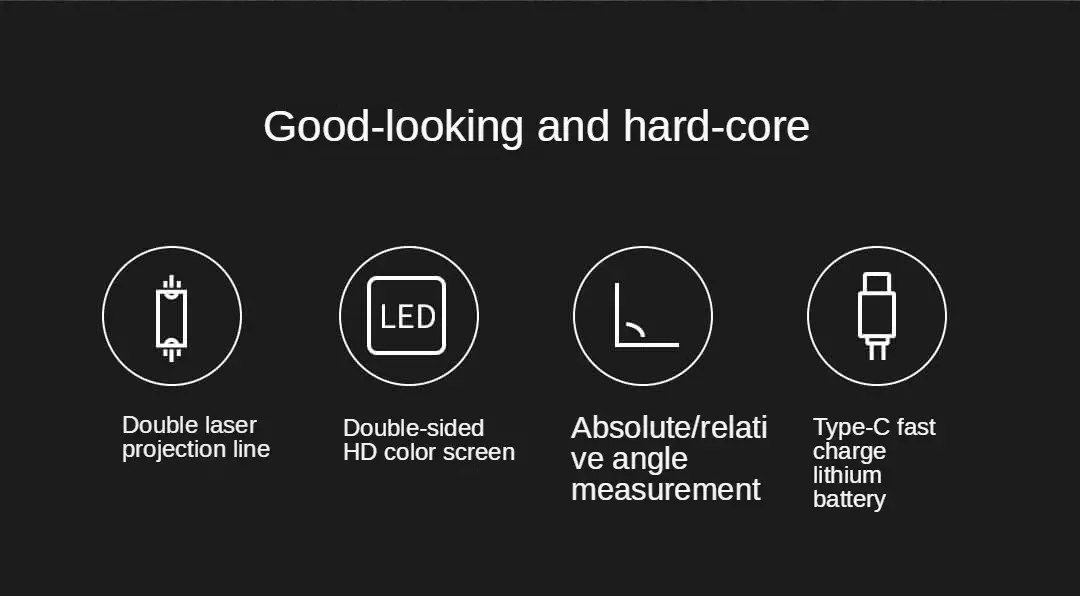

- 360° horizontal laser rotation for versatile line projection
- Dual green and red beams for visibility across different surfaces
- ±1mm precision at 5 meters for reliable alignment reference
- Double-sided HD color screens for easy angle reading
- 3000mAh lithium battery with 4–6 hours continuous runtime
- USB-C charging for modern, widely available power compatibility
- Frosted aluminum body — 70g, 120 × 20 × 35mm
- Includes aluminum tripod with UNC 1/4-inch mounting thread
| Brand | Xiaomi |
|---|---|
| Model | DUKA ATuMan LI1 |
| Laser Configuration | Dual-line (green + red) |
| Horizontal Rotation | 360° |
| Precision | ±1mm at 5 meters |
| Angle Modes | Absolute and relative |
| Display | Double-sided HD color screens |
| Battery | 3000mAh lithium, rechargeable |
| Battery Life | 4–6 hours continuous use |
| Charging Interface | USB-C |
| Body Material | Frosted aluminum |
| Weight | 70g |
| Dimensions | 120 × 20 × 35mm |
| Tripod | Aluminum, included |
| Mount Thread | UNC 1/4-inch |
- Full refund available
We accept returns for eligible items within 2 days from the date of delivery. To be eligible for a return, the item must be unused, in its original packaging, and in the same condition as when you received it. Items that are non-returnable include [list any specific non-returnable items such as perishable goods, intimate items, etc.]
At adatun.com, we are committed to protecting your privacy and ensuring the security of your personal information. This Privacy Policy outlines how we collect, use, disclose, and protect the information you provide to us. By using our website, you consent to the practices described herein.
- The DUKA ATuMan LI1 runs 4–6 hours on a full charge of its 3000mAh lithium battery. Actual runtime depends on which laser is active — running both the green and red beams simultaneously draws more power than operating a single line. Brightness settings also affect longevity, with higher output reducing total runtime. The device charges via USB-C with the included cable.
- On dark or textured surfaces like painted drywall, rough concrete, or dark wood, the green laser can appear dim and harder to distinguish. The red laser maintains better visibility on these materials due to its wavelength characteristics. For best results on dark surfaces, switch to the red beam and minimize ambient lighting. Position the unit closer to the target surface if needed for improved readability.
- Absolute mode displays each line's angle relative to horizontal (0°), useful for determining if a wall or surface is plumb or level. Relative mode shows the angle between the two projected lines themselves, letting you copy an angle from one location to another. Use absolute when checking a single surface against level; use relative when transferring a measured angle between two existing features or a template.
- Yes, the package includes an aluminum tripod with adjustable legs and a standard UNC 1/4-inch mounting thread that screws directly into the base of the projector. The tripod allows stable placement on flat surfaces like floors and workbenches, and the adjustable legs help compensate for uneven ground. The tripod folds down compactly for transport and stores in the included carry pouch.
- The DUKA ATuMan LI1 works on walls, floors, ceilings, tiles, wood panels, and metal surfaces. It is designed for indoor use in construction, woodworking, tiling, and general DIY applications. The laser projects clearly on most common construction materials including drywall, concrete, ceramic tile, laminate, and painted surfaces. Outdoor visibility decreases significantly due to ambient light, so this is primarily an indoor tool.
- The device delivers ±1mm precision at a 5-meter distance, which translates to approximately ±0.01° angular accuracy under ideal conditions. For most alignment tasks in residential and light commercial settings — like finish carpentry, tiling, or installing shelving — this precision is sufficient. Accuracy may decrease slightly with temperature changes, uneven surfaces, or low battery charge.
- Yes. Press the lock button to freeze the current angle reading on both HD screens. This lets you reposition the unit or move to another area without losing the measurement. When locked, both displays hold the reading until you press unlock to resume live angle tracking. This feature is useful when transferring measurements between locations or keeping a reading steady while marking material.
- The package includes the DUKA ATuMan LI1 projector body, an aluminum tripod with adjustable legs, a USB-C charging cable, and a carry pouch. Some versions may also include an instruction manual or lens cleaning cloth. Package contents may vary by region or seller, so confirm with the retailer before purchase to ensure all expected items are included.
