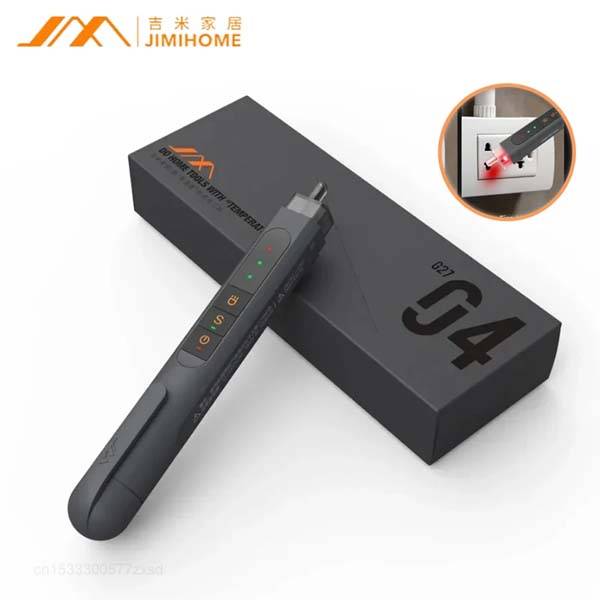

Xiaomi JIMIHOME JM-G2704 Mini Electric Test Pen Wireless Non-Contact Voltage Detector

The Xiaomi JIMIHOME JM-G2704 is a compact non-contact voltage detector pen designed for safe AC testing around the home, workshop, or job site. It senses live wires without direct metal contact, alerts you with a bright LED and audible cue, and fits comfortably in a shirt pocket thanks to its mini form factor. If you need a quick, no-fuss way to check outlets, switches, and appliance leads, the JM-G2704 voltage detector is purpose-built for that task.

Xiaomi jm-g2704 voltage detector: Xiaomi JM-G2704 Non-Contact Voltage Detector

Voltage detectors are the simplest way to confirm whether a wire or terminal is live before you touch it. The Xiaomi JIMIHOME JM-G2704 uses non-contact AC voltage sensing, so you can hold the tip near a conductor and get an instant LED-and-buzzer alert if voltage is present. There is no need to strip insulation or touch a bare conductor, which makes it a practical everyday tool for homeowners, electricians, and anyone who occasionally does DIY wiring.

The pen-sized body slips into a tool bag, glove box, or shirt pocket, and the whole unit is light enough to carry around all day. A pocket clip keeps it secured when you are climbing a ladder or moving between rooms. Because it is wireless and battery powered, the JM-G2704 is ready to use the moment you power it on, with no app pairing, no cables, and no calibration routine to remember.

Key Features

• Non-contact AC voltage detection: Senses live wires through insulation without metallic contact, reducing the risk of accidental shock when checking outlets, switch plates, and breaker terminals.
• LED and audible alert: A bright indicator at the tip plus an audible cue provide clear feedback the moment voltage is detected, even in dimly lit panels or distribution boards.
• Compact pen-style build: Mini form factor with a pocket clip, designed for one-handed operation in tight electrical cabinets and behind appliances.
• Anti-rust and wear-resistant coating: A double-sided nylon coating protects the body from corrosion and everyday scuffs, keeping the tool usable in humid basements and outdoor enclosures.
• Dual-sided calibration markings: Clear printed scales on both faces of the tip allow you to read results from either side, so the orientation of the pen does not slow you down.
• Lock and retract-friendly mechanism: A simple lock function holds the reading in place for inspection, while the release mode returns the tip to standby for the next check.

Specifications

• Brand: Xiaomi (JIMIHOME)
• Model: JM-G2704
• Type: Wireless non-contact voltage detector / electric test pen
• Detection Method: Non-contact AC voltage sensing
• Alert Type: LED indicator with audible cue
• Body Material: Double-sided nylon coating for anti-rust and wear resistance
• Calibration: Dual-sided printed scale, no scratches or fading
• Mechanism: Lock function and retract-style release for controlled operation
• Form Factor: Mini pen with pocket clip

Why Homeowners and Electricians Choose This

The Xiaomi JM-G2704 is built for the kind of work that is too risky to guess at. Before changing a light fixture, replacing a socket, or working inside a distribution board, a quick sweep with a non-contact voltage detector confirms whether the circuit is still live. The wireless pen design means you are not tethered to a multimeter, and the LED alert is visible even when the panel is partly covered.

For homeowners, the appeal is simplicity: press the button, hold the tip near the wire, and watch for the alert. For electricians and HVAC technicians, the pocketable form factor and the wear-resistant nylon coating make it a sensible secondary check to complement a full multimeter. The lock function is useful when you want to confirm a reading without keeping your finger on the button, which is helpful when working overhead or in awkward positions.

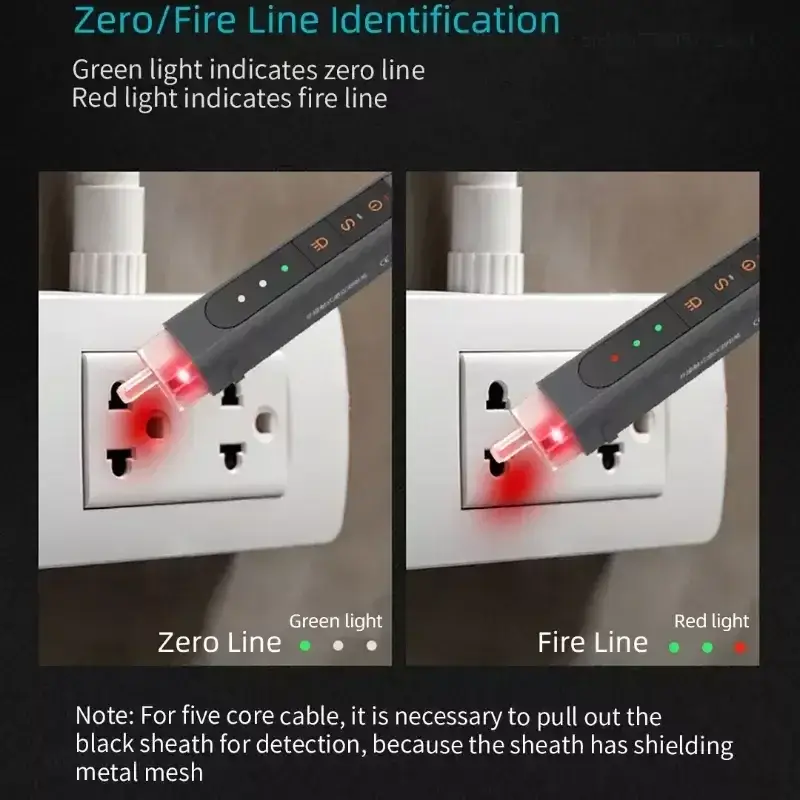

Use case 1: Checking wall outlets before repair

Before unscrewing a faceplate, run the Xiaomi JM-G2704 along the slots of the outlet and around the screws. If the LED stays dark and the buzzer is silent, the circuit is unlikely to be live at the outlet, but you should still switch off the relevant breaker at the consumer unit as a primary safety step. The detector is a confirmation tool, not a substitute for proper isolation.

Use case 2: Tracing a wire in a junction box

When you open a junction box and need to identify which conductor feeds a particular socket or light, the non-contact tip can quickly indicate which wires are energised. Move slowly along each conductor and watch for the alert. The dual-sided scale means a colleague on the other side of the box can read the result at the same time.

Use case 3: Quick appliance and extension lead checks

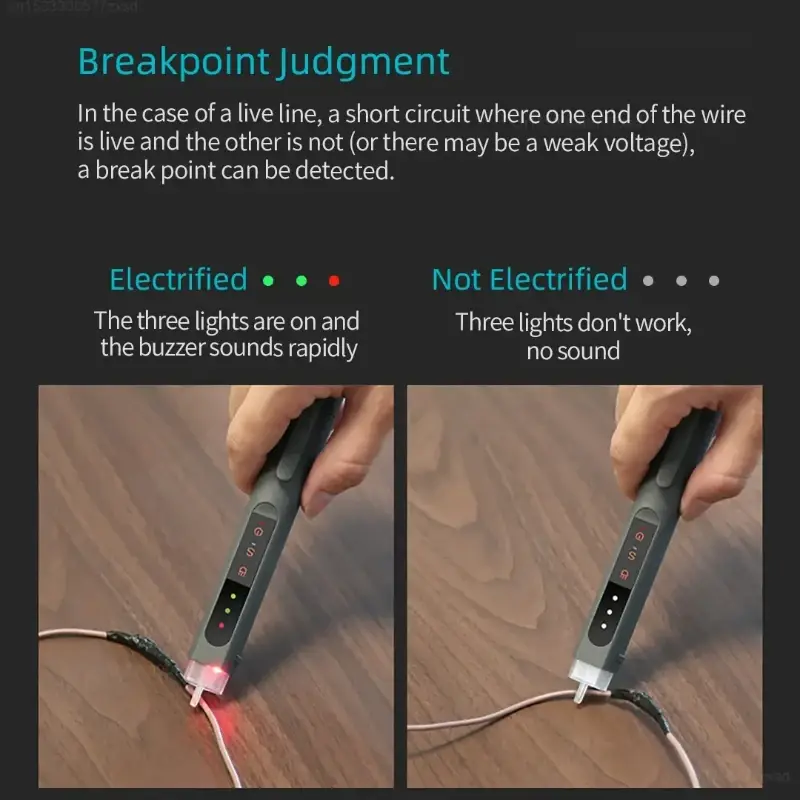

Damaged appliance leads are a common source of nuisance tripping. A pass along the cable with the JM-G2704 can highlight a section where insulation has worn through and the inner conductor is intermittently live. It is a fast triage step before deciding whether to replace the lead or call a technician.

How to Use the JM-G2704

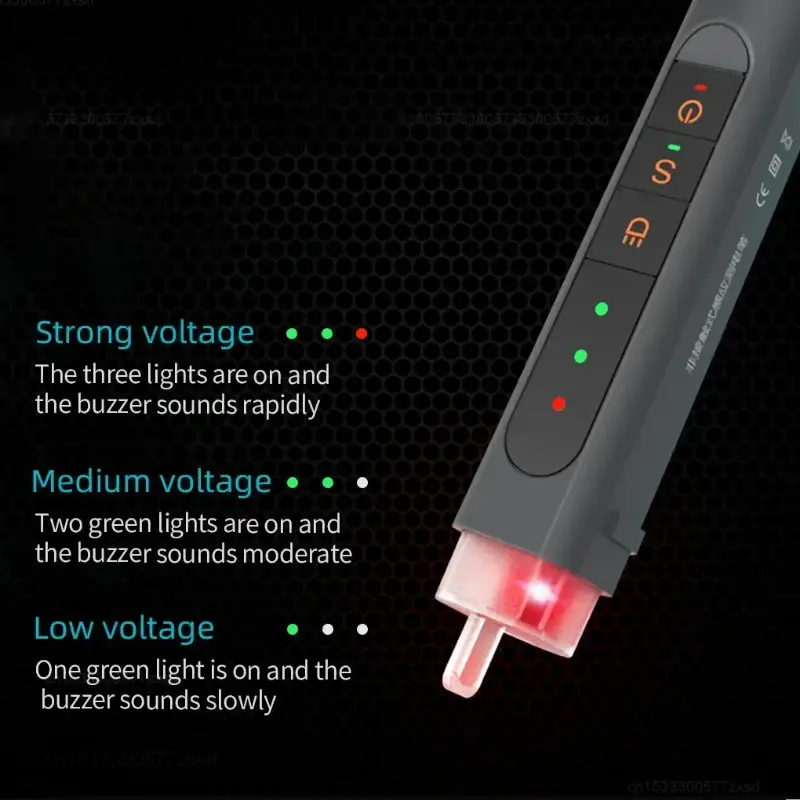

Operation is intentionally simple. Power the pen on, hold the flat side of the tip near the conductor or outlet you want to test, and watch the LED at the tip. A steady or flashing light, accompanied by a buzzer, indicates that AC voltage is present. Move the tip away, and the alert stops. The lock function lets you freeze the current reading so you can take a photo for documentation or discuss it with a colleague.

For best results, move the tip slowly and keep it within a few millimetres of the conductor. Non-contact detectors respond to the electric field around a live wire, so the closer you are, the more reliable the reading. Avoid using the pen on shielded cables or inside fully enclosed metal conduit, where the field may be too weak to trigger a reliable response.

What to Look for When Buying a Voltage Detector

Not all non-contact voltage testers behave the same way. A few characteristics separate a useful everyday tool from one that frustrates you on the first job:

• Alert clarity: A combined LED and audible buzzer is easier to rely on than a single light, especially in noisy plant rooms or bright outdoor conditions.
• Build quality: Look for an anti-rust coating and a body that survives drops onto concrete. A pocket clip is a small detail that makes a real difference during a long working day.
• Readability: Dual-sided calibration markings let you read the result no matter how the pen is angled in your hand.
• Lock and release mechanism: A lock function for confirmation readings and a smooth release back to standby saves time on repetitive checks.
• Form factor: A pen-sized body slips into tool rolls and shirt pockets, so it is more likely to be on you when you actually need it.

Care and Maintenance

Keep the tip clean and free of dust or paint, since contaminants on the sensor face can weaken the field it is trying to detect. Wipe the body with a dry cloth after use in damp environments, and store the pen in a dry toolbox. Replace the battery promptly when the LED begins to dim, because a weak battery can produce unreliable readings. Avoid dropping the pen onto hard surfaces, and do not use it as a pry bar or screwdriver, as the internal sensor is precision-aligned.

What's Included

• 1 × Xiaomi JIMIHOME JM-G2704 Mini Electric Test Pen
• 1 × User documentation

Whether you are a homeowner checking a flickering lamp or a tradesperson running a quick pre-isolation sweep, the Xiaomi JIMIHOME JM-G2704 non-contact voltage detector pen offers a practical, pocket-friendly way to confirm whether a circuit is live before you touch it.
