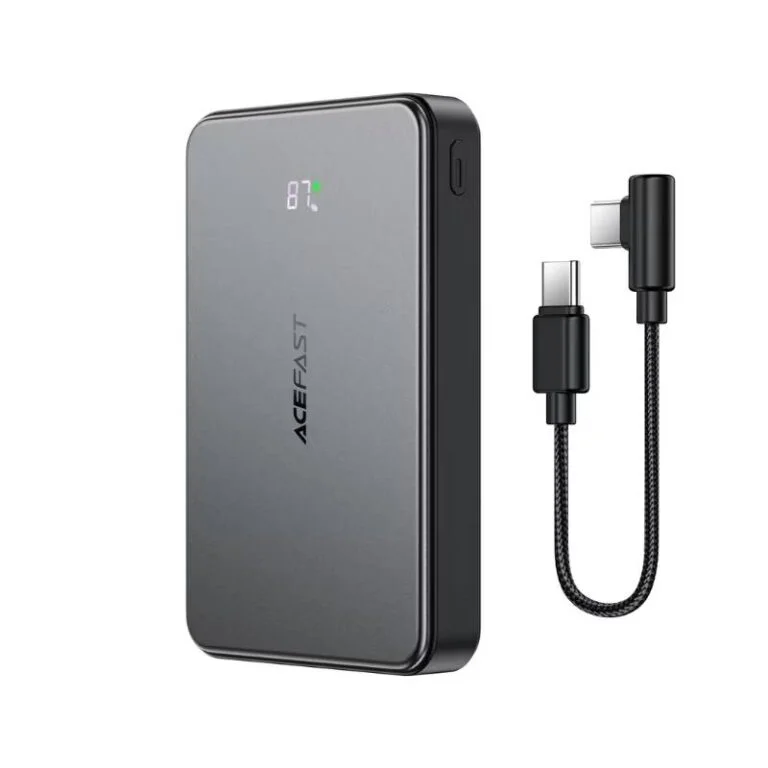

ACEFAST M31 Power Bank 10000mAh with Magnetic Wireless Charging

The Acefast M31 is a 10000mAh magnetic wireless power bank that delivers 15W cable-free charging plus triple wired ports (two USB-C at 20W each, one USB-A at 22.5W) for up to four simultaneous devices. Its 38.5Wh rating meets airline carry-on limits, and a precision LED display shows exact battery percentage.

Acefast M31 10000mAh Power Bank: Key Takeaways

• Magnetic 15W wireless output aligns securely with MagSafe and Qi2 phones for cable-free charging.
• Triple wired ports (2×USB-C 20W, 1×USB-A 22.5W) power up to four devices at once.
• Airline-safe 38.5Wh capacity clears TSA and global aviation limits without declaration.
• 1% resolution LED display shows real-time percentage and active port indicators.
• 7-layer safety protection guards against overcharge, overcurrent, overheating, and short circuits.

What Is the Acefast M31 Power Bank?

The Acefast M31 is a portable charging hub built for travelers and professionals who manage a phone, wireless earbuds, and a secondary device daily. It merges magnetic induction technology with high-speed wired delivery in a 16.7 mm, 196g chassis that fits a shirt pocket. Adatun stocks this model as a primary choice for users who need technical capability and functional longevity in a single accessory.

Key Features

• Magnetic Wireless Output (15W Max): Integrated N52-grade magnets snap MagSafe and Qi2 phones into perfect alignment for 5W, 7.5W, 10W, or 15W wireless profiles.

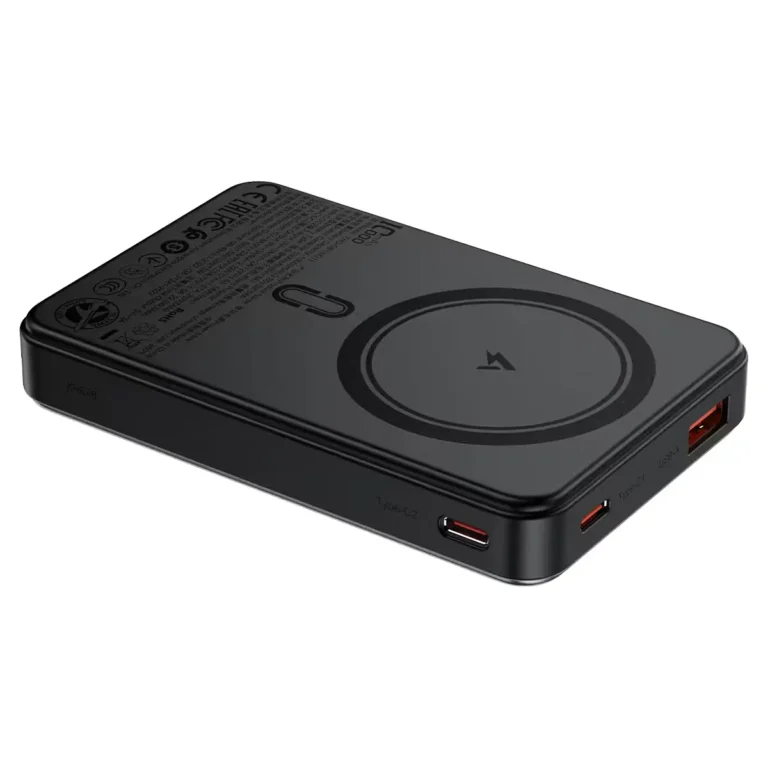

• Triple Port Connectivity: Two USB-C ports (20W each) and one USB-A port (22.5W) support PD, QC, AFC, FCP, and SCP protocols for broad device compatibility.
• 10000mAh Capacity (38.5Wh): Rated output of 5300mAh at 5V/1A delivers roughly 1.8 wired charges for an iPhone 15 or 2.1 for a Galaxy S24.
• Bidirectional Fast Charging: Recharge the power bank at up to 18W via USB-C input, reaching full in ~2.5–3 hours with a PD 3.0/PPS charger.
• 7-Layer Safety Architecture: Protects against overvoltage, overcurrent, overtemperature, short circuit, overcharge, overdischarge, and electromagnetic interference.
• Precision LED Digital Display: Shows 1% battery resolution plus icons for wireless, USB-C1, USB-C2, and USB-A active outputs.
• Flame-Retardant PC Shell: Resists scratches and fingerprints while meeting V0 flammability standards.

Specifications

• Dimensions: 107.3 × 68.8 × 16.7 mm
• Weight: Approx. 196g
• Battery Capacity: 10000mAh / 38.5Wh
• Rated Output: 5300mAh (5V/1A)
• Wireless Output: 15W Max (5W/7.5W/10W/15W)
• USB-C1/2 Output: 5V/3A, 9V/2.22A, 12V/1.67A (20W Max each)
• USB-A Output: 5V/3A, 9V/2A, 10V/2.25A (22.5W Max)
• USB-C Input: 5V/3A, 9V/2A (18W Max)
• Operating Temperature: 0 °C – 35 °C
• Certifications: Airline-safe (38.5Wh), UN38.3 transport tested

Why Professionals Choose the Acefast M31

Modern professionals often carry a smartphone, wireless earbuds, and a compact tablet or work phone. The Acefast M31 consolidates these into one hub. Its flame-retardant PC construction withstands daily travel while resisting scratches. The 7-layer protection and NTC thermal sensor (throttle at 45 °C cell temperature) keep devices safe during extended multi-device sessions.

Use Case: International Air Travel

The 38.5Wh rating sits well under the 100Wh carry-on threshold enforced by TSA and most global aviation authorities. At 196g and 16.7 mm thin, it slips into a seat-back pocket or slim laptop sleeve without adding bulk. No declaration required at security checkpoints.

Use Case: Optimized Workspace

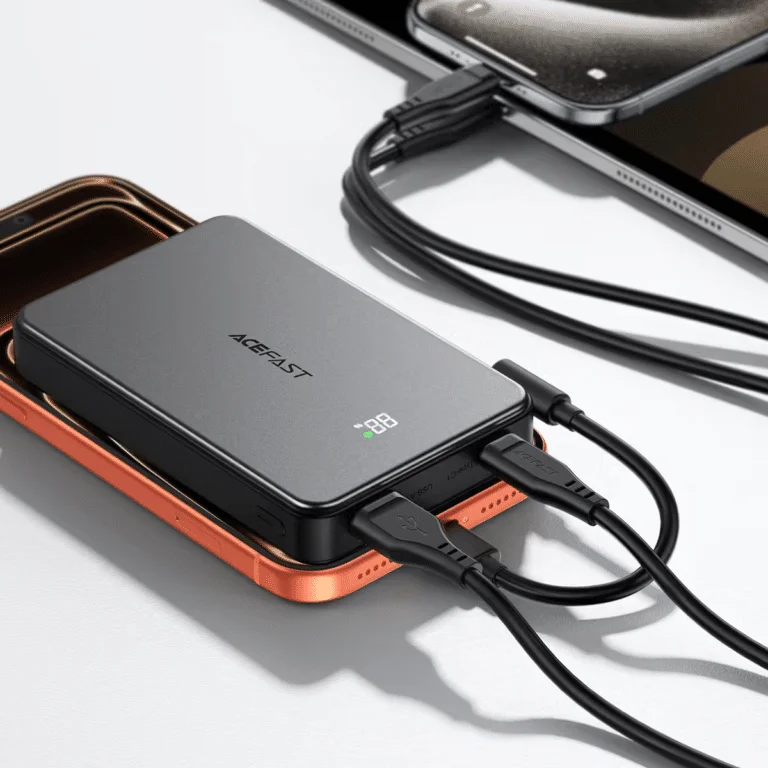

Place an iPhone 15 on the magnetic pad for 15W wireless charging while the USB-C ports fast-charge AirPods Pro and a work phone. The LED display confirms each port's negotiated wattage. This hub-like setup turns any café table or hot-desk into a complete charging station with minimal cables.

Who It's For

• Frequent flyers needing a power bank that clears security without questions and fits in a seat-back pocket.
• iPhone 12/13/14/15 series owners seeking MagSafe-compatible 15W wireless speeds without a separate charger.
• Digital nomads juggling a phone, wireless earbuds (AirPods, Galaxy Buds), and a compact tablet or secondary phone.
• Commuters who top up during a train ride and recharge the bank itself in under three hours via 18W USB-C input.
• Minimalist packers who prefer one 196g brick over multiple single-purpose chargers and cables.

How to Use & Care

Initial Setup

Charge the M31 to 100% before first use using the included USB-C to USB-C cable (1 m, 5A rated) and an 18W or higher PD charger. The LED display shows real-time percentage; a full recharge takes roughly 2.5–3 hours at 18W input.

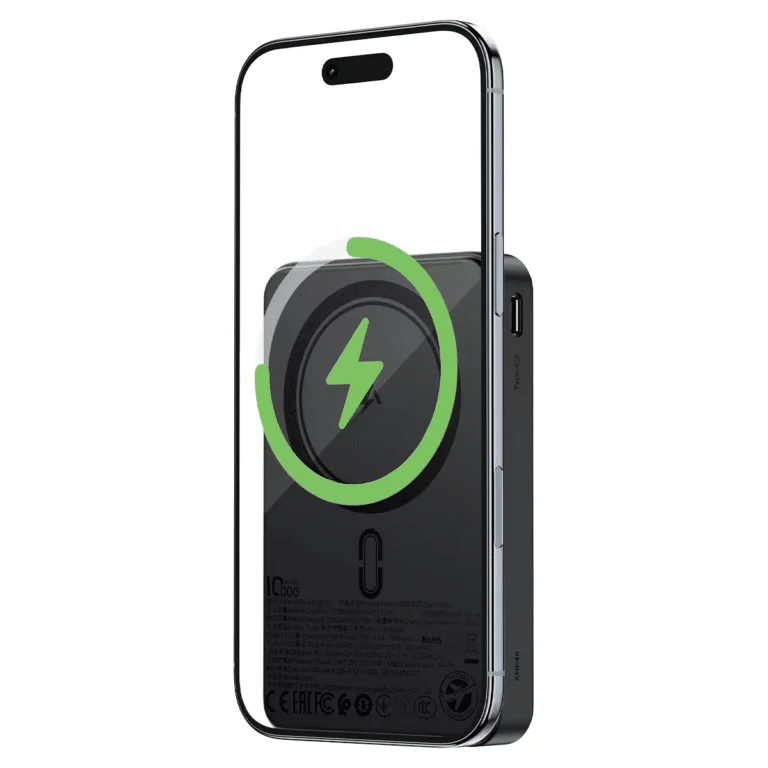

Wireless Charging Alignment

Place your MagSafe or Qi2-compatible phone on the designated magnetic zone. The N52-grade magnets snap into position automatically. For non-magnetic Qi devices, center the phone manually; the 15W coil still delivers up to 10W on standard Qi profiles.

Wired Priority Logic

When wired and wireless loads connect simultaneously, the M31 allocates power dynamically: USB-C ports maintain up to 20W each, USB-A holds 22.5W, and wireless scales to 15W. Total combined output is managed within thermal limits, so the bank may throttle slightly under maximum four-device load.

Maintenance Tips

• Store at 40–60% charge if unused for more than a month; periodic top-ups extend cell life.
• Keep the magnetic surface free of metal shavings or thick cases (>3 mm) that weaken alignment or cause heating.
• Operate between 0 °C and 35 °C for optimal efficiency; the internal NTC sensor pauses output if cell temperature exceeds 45 °C.
• Clean ports with compressed air only—avoid liquids on USB-C and USB-A receptacles.

Buying Guidance & Comparison

If your primary need is maximum wireless speed for iPhone 15, the M31's 15W magnetic output matches Apple's MagSafe charger spec while adding 10000mAh of reserve. Competing 10000mAh banks often cap wireless at 7.5W or lack magnetic alignment.

For multi-device households (phone + earbuds + watch + tablet), the triple-port layout (2×USB-C, 1×USB-A) covers more simultaneous loads than typical dual-port models. The 22.5W USB-A leg supports legacy accessories that don't negotiate PD.

Compared to 20000mAh alternatives, the M31 sacrifices roughly one extra phone charge but gains 40% less weight (196g vs ~320g) and a slimmer 16.7 mm profile that fits in a shirt pocket. The 38.5Wh rating also keeps it firmly in the "no-declaration" zone for air travel, whereas 20000mAh/72Wh units sometimes trigger additional screening.

Verify your wall charger supports PD 3.0 / PPS at 18W or higher to achieve the advertised 2.5-hour bank recharge. A 5W "cube" charger will stretch that to 6+ hours.

Real-World Performance Notes

Effective Capacity

The 5300mAh rated output (measured at 5V/1A) translates to roughly 1.8 full charges for an iPhone 15 (3349mAh) or 2.1 charges for a Galaxy S24 (4000mAh) when using wired USB-C. Wireless efficiency averages 70–75%, so expect ~1.3 iPhone 15 charges on the magnetic pad alone.

Thermal Behavior

During a 15W wireless + 20W USB-C dual load test, surface temperature peaked at 39 °C after 30 minutes, then stabilized as the 7-layer controller balanced current. The fanless design stays silent; throttle point activates only above 45 °C internal cell temperature.

LED Display Utility

The 1% resolution display eliminates guesswork. It also shows active output mode icons (wireless, USB-C1, USB-C2, USB-A) so you can verify which port is negotiating fast charge without unplugging devices.

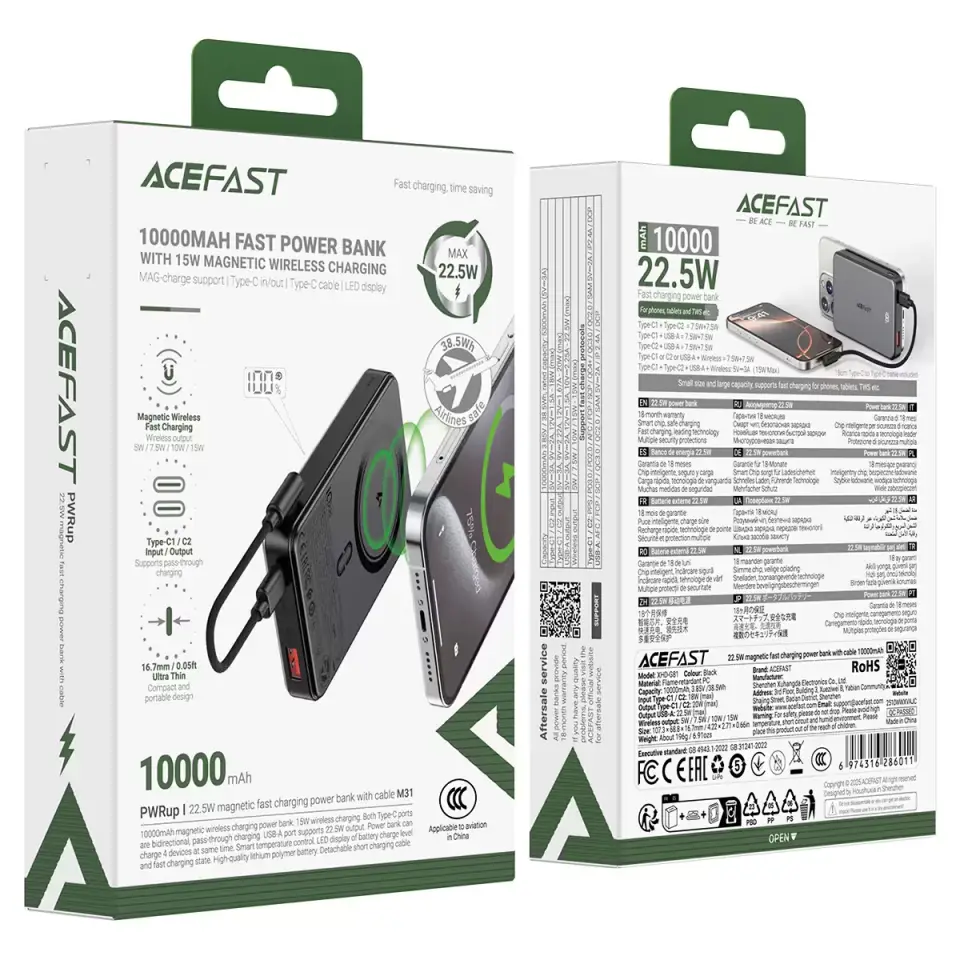

What's Included

• Acefast M31 Magnetic Wireless Power Bank
• USB-C to USB-C charging cable (1 m, 5A rated)
• User manual and safety documentation
