MCDODO CH-4200 70W Gana Ultra Series Smart Charger

Key Features

• 70W High-Speed Fast Charging: Delivers up to 70W maximum output through a compatible USB-C port for fast charging supported laptops, tablets, and smartphones.

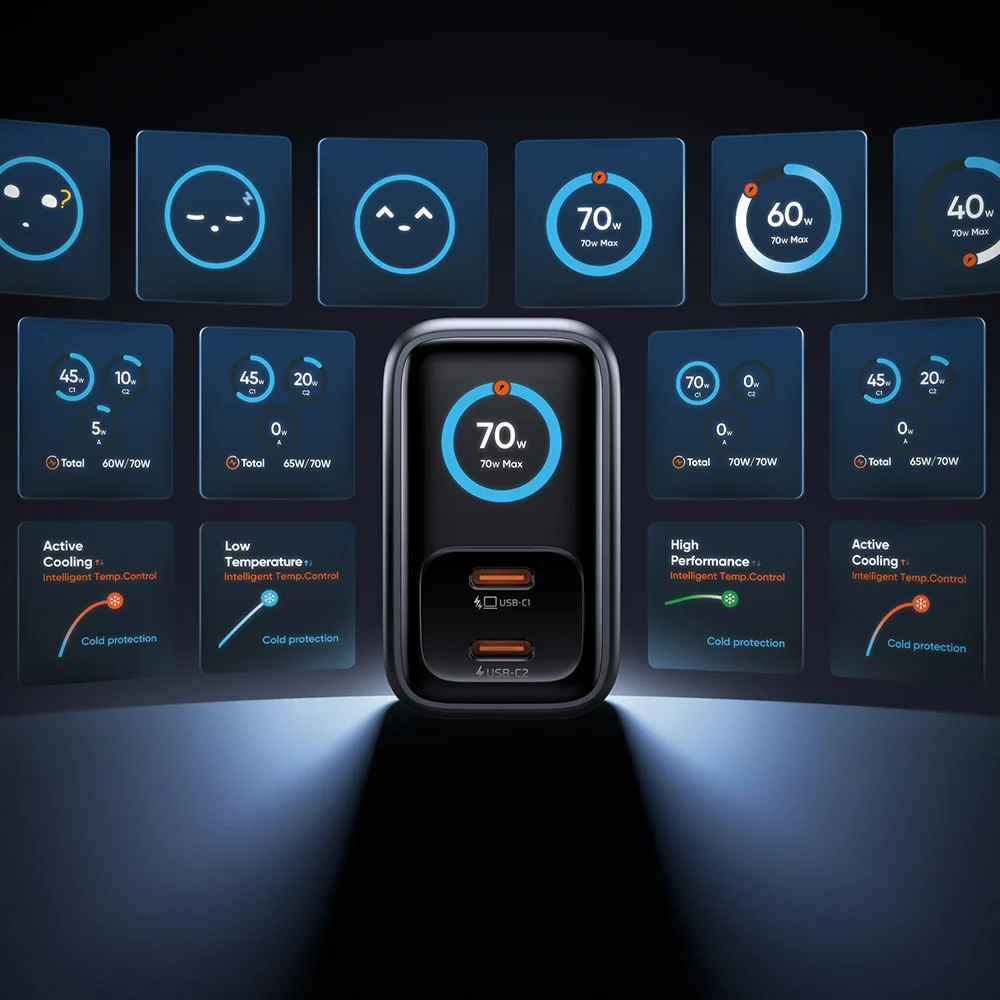

• HD TFT Color Display: Features an integrated color screen that displays real-time total power output, per-port power distribution, operating temperature, and animated charging status.

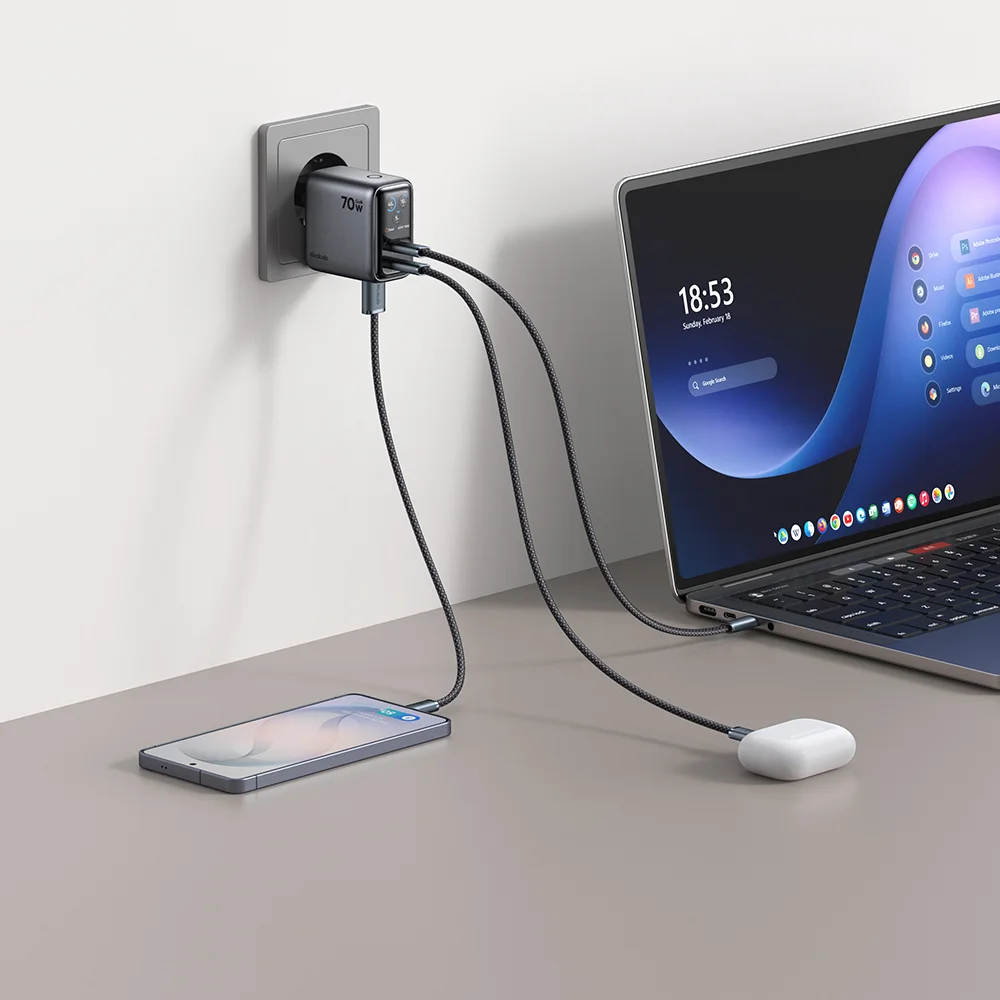

• Triple-Port Charging Design: Equipped with two USB-C ports and one USB-A port, allowing you to charge up to three compatible devices simultaneously.

• Samsung Super Fast Charging 2.0: Supports compatible PPS-based fast charging protocols for high-speed charging on supported Samsung Galaxy devices.

• Advanced GaN Technology: Uses Gallium Nitride semiconductor technology to improve charging efficiency, reduce heat generation, and maintain a compact design.

• Intelligent Power Distribution: Dynamically manages power allocation across connected devices to support efficient multi-device charging.

• Multiple Fast-Charging Protocols: Supports PD 3.0, PPS, QC 4.0+/3.0, FCP, and Apple 2.4A charging protocols for broad device compatibility.

• Fire-Retardant Housing: Constructed with a flame-retardant polycarbonate (PC) shell for durability and enhanced safety during everyday use.

• Universal Voltage Compatibility: Supports 100–240V AC input, making it suitable for travel with compatible plug adapters.

• Compact and Portable Design: Its streamlined construction makes it suitable for home, office, and travel charging setups.

Specifications

• Brand: Mcdodo

• Series: Gana Ultra

• Model: CH-4200 (CH-419 Series)

• Product Type: 70W GaN Smart Wall Charger with TFT Display

• Charging Technology: Gallium Nitride (GaN)

• Maximum Total Output: 70W

• Port Configuration: 2 × USB-C + 1 × USB-A (2C1A)

• USB-C1 Output: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.5A (70W Max)

• USB-C2 Output: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.5A (70W Max)

• USB-A Output: 5V⎓3A, 9V⎓3A, 12V⎓2.5A, 20V⎓1.5A (30W Max)

• Multi-Port Output (C1 + C2): 45W + 20W (65W Max)

• Multi-Port Output (C1 + A): 45W + 18W (63W Max)

• Multi-Port Output (C1 + C2 + A): 45W + 15W (60W Max, combined)

• Display Type: HD TFT Color Display

• Display Information: Real-Time Wattage, Per-Port Power Distribution, Temperature, and Charging Status

• Supported Charging Protocols: PD 3.0, PPS, Samsung SFC 2.0, QC 4.0+/3.0, FCP, Apple 2.4A

• Input: AC 100–240V~, 50/60Hz, 1.2A Max

• Material: Flame-Retardant Polycarbonate (PC)

• Color: Black

• Dimensions: 57 × 33.8 × 94.6mm

• Weight: Approximately 129.6g

• Compatibility: Compatible MacBook and Windows laptops, iPads, iPhones, Samsung Galaxy devices, Nintendo Switch, and supported USB-powered devices
