Mcdodo CH-6130 Gana Ultra 100W Smart Display Fast Charging Power Adapter with Cable And Triple Output Ports

Key Features

• 100W Ultra-Fast Charging: Delivers up to 100W maximum output from a single USB-C port, suitable for compatible laptops, tablets, and smartphones.

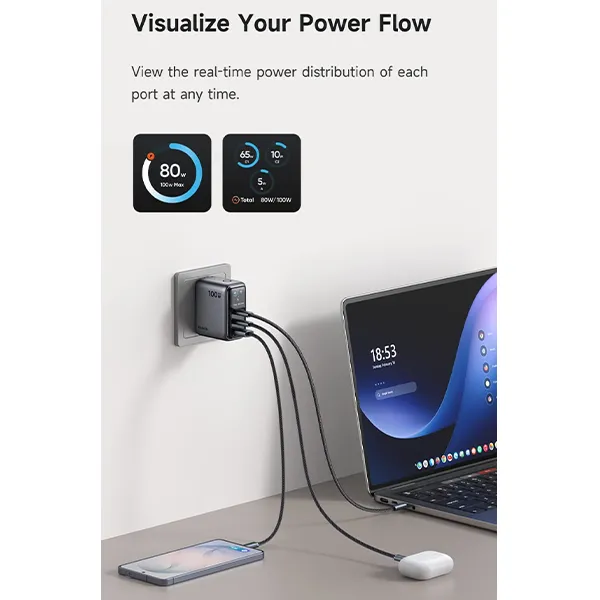

• HD TFT Colour Display: Features a built-in digital display showing real-time charging power, per-port wattage distribution, temperature status, and animated charging information.

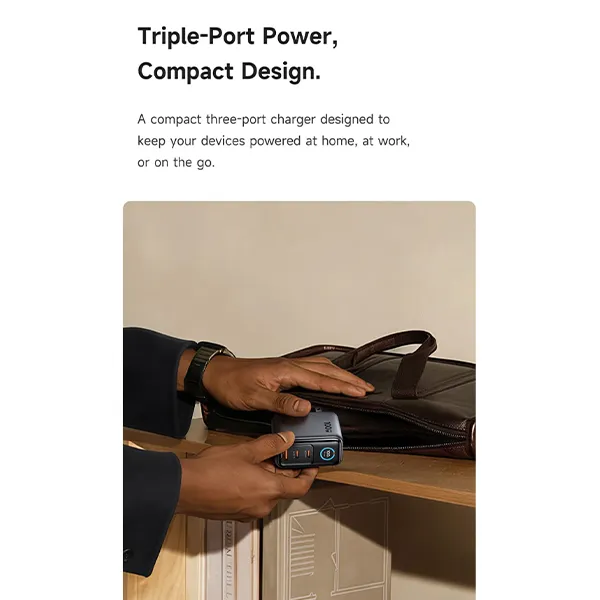

• Triple Output Ports (2C1A): Equipped with 2 × USB-C ports and 1 × USB-A port to charge up to three compatible devices simultaneously.

• Advanced GaN Technology: Uses Gallium Nitride semiconductor technology for efficient power delivery, a compact design, and improved heat management.

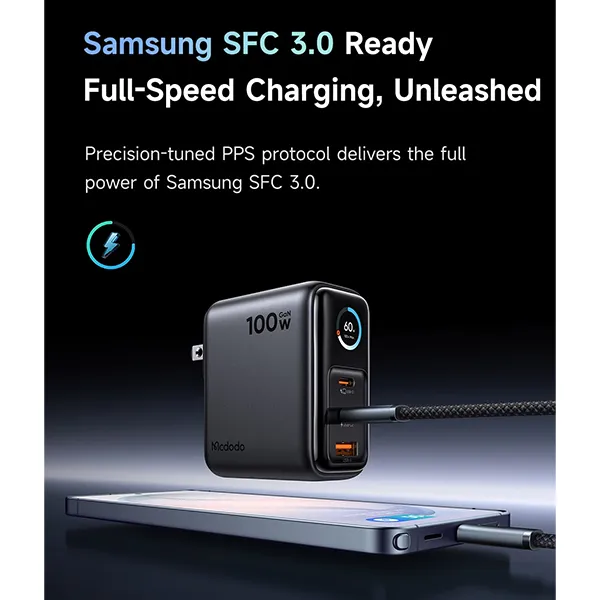

• Samsung Super Fast Charging 2.0 Support: Supports PPS fast charging for compatible Samsung Galaxy devices, with charging speeds depending on device compatibility.

• 100W USB-C to USB-C Cable Included: Comes with a compatible fast-charging cable for convenient charging right away.

• Intelligent Power Distribution: Dynamically distributes power across connected devices to support efficient multi-device charging.

• Wide Device Compatibility: Suitable for compatible MacBook laptops, Windows laptops, iPads, iPhones, Samsung Galaxy devices, Steam Deck, and power banks.

• Multiple Fast-Charging Protocols: Supports PD 3.0, PPS, QC 4.0+/3.0, FCP, SCP, and Apple 2.4A.

• Flame-Retardant Construction: Built with a flame-retardant polycarbonate (PC) shell.

Specifications

• Brand: Mcdodo

• Series: Gana Ultra

• Model: CH-6130 (CH-613 Series)

• Product Type: GaN Fast-Charging Power Adapter with Cable

• Maximum Output Power: 100W

• Technology: Gallium Nitride (GaN)

• Display: HD TFT Colour Digital Display

• Output Ports: 2 × USB-C + 1 × USB-A

• USB-C1 / USB-C2 Output: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A (up to 100W per port, individually)

• USB-A Output: 4.5V⎓5A, 5V⎓4.5A, 9V⎓3A, 12V⎓2.5A, 20V⎓1.5A

• Combined Output:

  • USB-C1 + USB-C2: 65W + 30W (95W maximum)

  • USB-C1 + USB-A: 65W + 22.5W

  • USB-C1 + USB-C2 + USB-A: Intelligent dynamic power distribution

• Supported Charging Protocols: PD 3.0, PPS, QC 4.0+/3.0, FCP, SCP, Apple 2.4A

• Input: AC 100–240V~, 50/60Hz, 2.5A maximum

• Material: Flame-Retardant Polycarbonate (PC)

• Included Cable: USB-C to USB-C fast-charging cable, rated up to 100W
