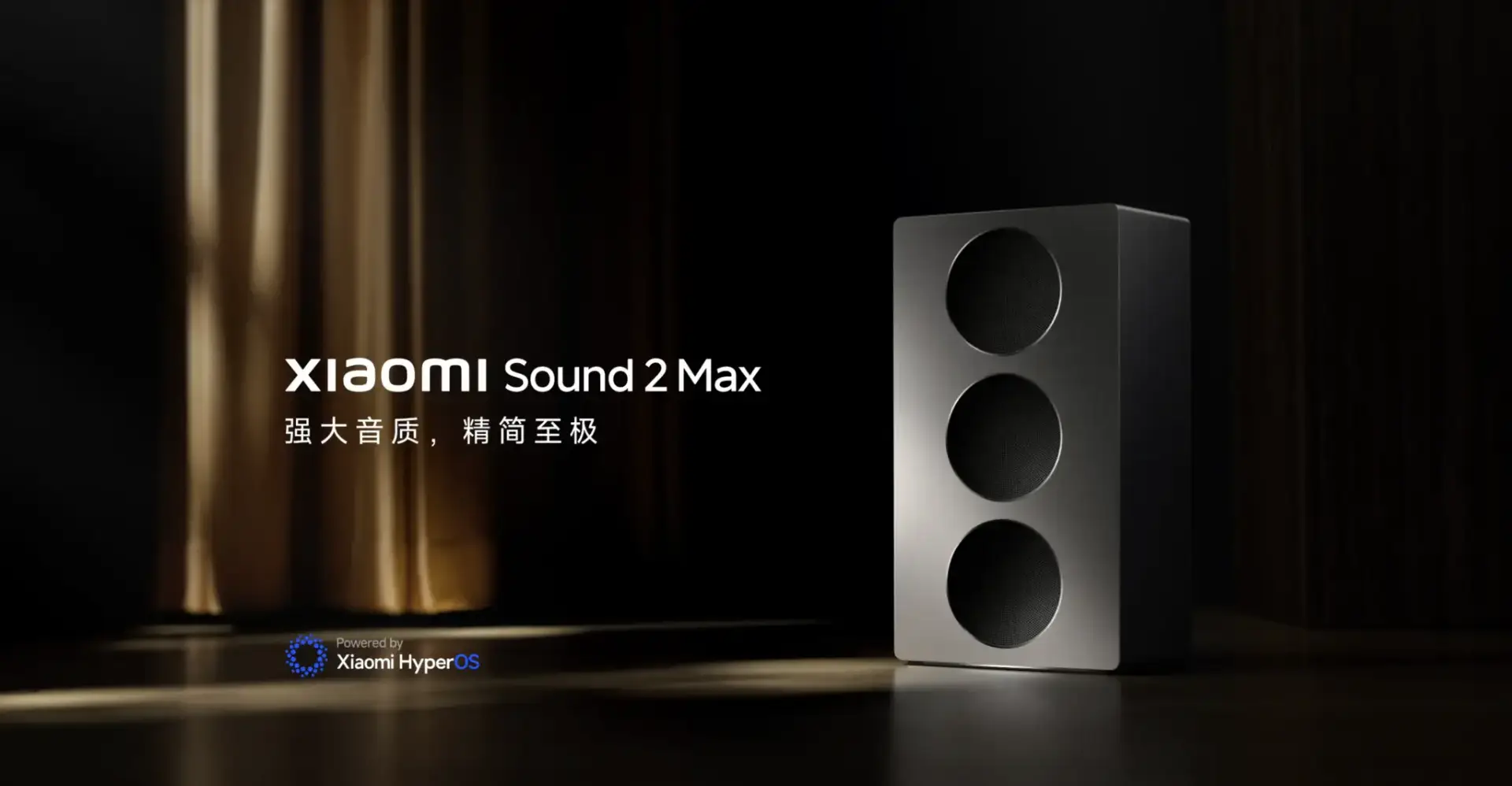

Xiaomi Sound 2 Max

Key Features

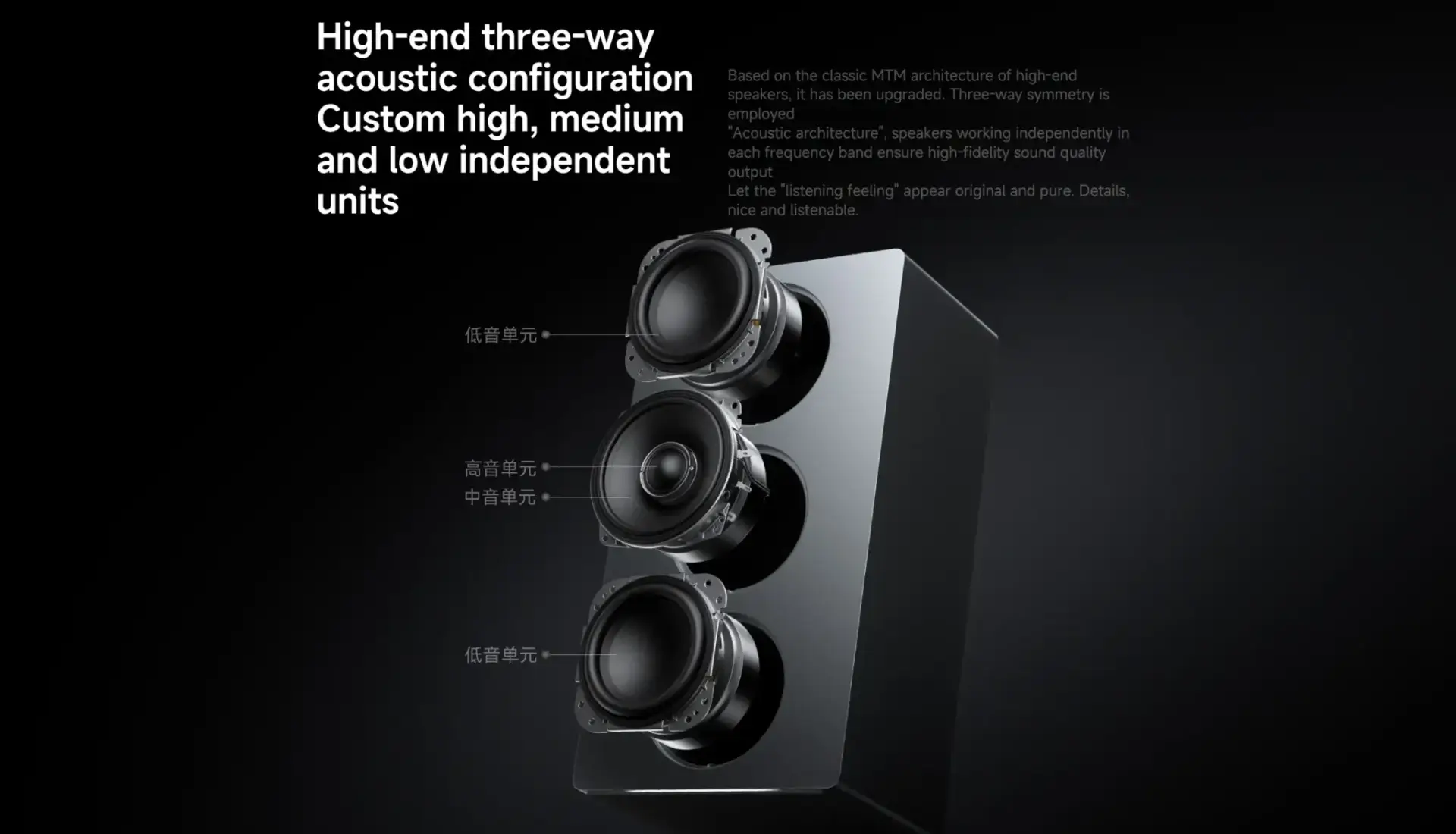

• Flagship Three-Way Acoustic Architecture – Engineered with dual bass drivers, dedicated midrange, and precision tweeter for independent frequency band performance and high-fidelity sound reproduction.

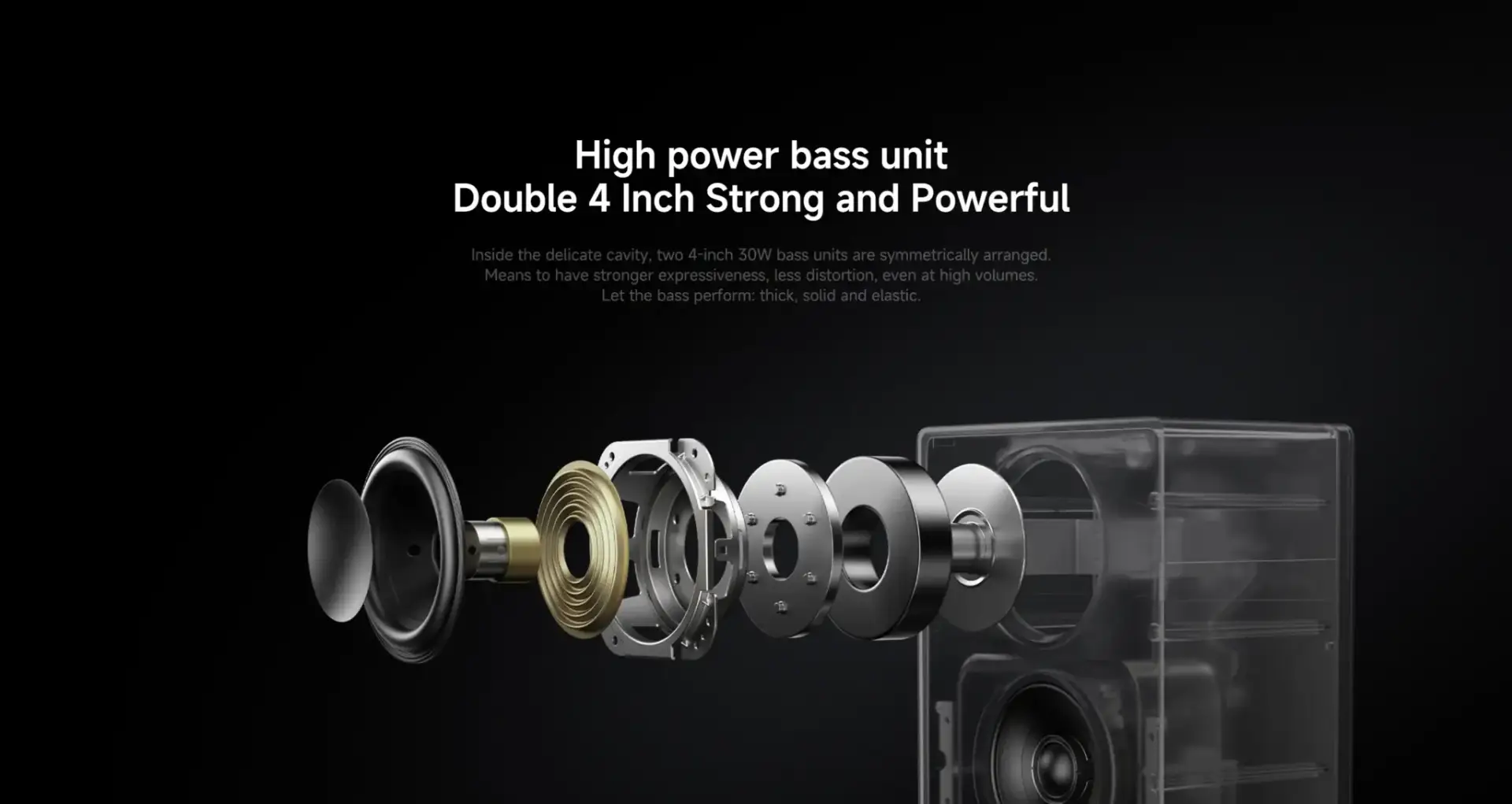

• Dual 4-Inch 30W Bass Drivers (60W Total) – Delivers deep, powerful low frequencies with enhanced transient response and reduced distortion at high volume levels.

• 4-Inch 30W Midrange Driver – Optimized for 480Hz–4kHz vocal and instrument clarity, producing rich and natural mids.

• 1.5-Inch 10W Tweeter – Reproduces detailed high frequencies from 3kHz–22kHz for crisp and refined treble output.

• Mid-Treble Coaxial Design – Aligns mid and high frequencies at a unified acoustic center for accurate imaging and cohesive soundstage performance.

• Symmetrical Acoustic Structure – Ensures balanced horizontal sound dispersion, expanding the optimal listening area.

• Monitoring-Level Sound Tuning – Powered by Xiaomi Compute Audio with professional tuning modes for accurate sound restoration.

• 6-Level Custom EQ Adjustment – Allows personalized multi-frequency tuning of highs, mids, and lows.

• Dolby Audio Support – Compatible with Dolby Audio via optional Xiaomi Sound Wireless Audio Connector for immersive surround sound.

• Ultra-Low Latency Wireless Networking – Supports stereo pairing (2 units) or surround setup (4 units) with latency as low as 64ms for synchronized audio-visual performance.

• Smart Spatial Audio Calibration – Automatically analyzes room acoustics to optimize sound output based on environment and listening position.

• Spatial Sound Field Reconstruction – Enhances immersion by intelligently redistributing stereo audio across four speakers.

• Bluetooth 5.2 & Dual-Band Wi-Fi – Stable wireless connectivity with support for 2.4GHz and 5GHz networks.

• Flexible Wired Inputs – Includes RCA analog and Type-C digital input options.

• One-Piece Aluminum Die-Cast Body – Improves structural rigidity, minimizes resonance, and enhances acoustic stability with a minimalist industrial design.

• Integrated Xiao Ai Voice Assistant – Supports AI-powered voice interaction, multi-round dialogue, and smart home voice control.

• Xiaomi Mesh 2.0 Hub Integration – Functions as a smart home central gateway for multi-device ecosystem control.

• Full-Color Linear Ambient Light Strip – Enhances atmosphere while providing intuitive status indication.

---

Specifications

• Brand: Xiaomi

• Model: OH1M

• Product Type: High-End Smart Speaker

• Acoustic Configuration:

  • Bass: 4-inch ×2 (30W each)

  • Midrange: 4-inch ×1 (30W)

  • Tweeter: 1.5-inch ×1 (10W)

• Rated Power:

  • Low Frequency: 60W (30W ×2)

  • Mid Frequency: 30W

  • High Frequency: 10W

• Frequency Response Range: 47Hz – 22kHz (-6dB)

• Frequency Accuracy: 50Hz – 21kHz (±2.5dB)

• Maximum Sound Pressure: 101dB SPL

• Microphone: Linear Microphone Array

• Wireless Connectivity:

  • Bluetooth 5.2 (A2DP)

  • Wi-Fi IEEE 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz Dual Band)

• Wired Connectivity: RCA Analog Input, Type-C Digital Input

• Power Input: DC 24V / 5A

• Dimensions: 197.6 × 135.3 × 363.8 mm

• Net Weight: 8.1 kg

• Lighting: Full-Color Linear Ambient Light Strip

• Multi-Speaker Support: Stereo Pairing (2 Units) / Surround Setup (4 Units)
